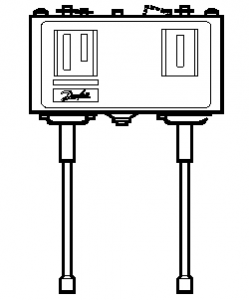

Công tắc áp lực KP17W 060-127566

Mã sản phẩm: 060-127566

Thương hiệu: Danfoss

Giá bán: 1 đ

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

KP pressure control, failsafe, (double bellows)

Type KP17W KP17B KP17B KP17W KP17W KP17W KP17W KP17W KP17B

Code no. 060-126766 060-126866 060-127466 060-127566 060-127666 060-202966 060-205566 060-518666 060-600466

060-127566

Characteristic	Value
Type	KP17W
Weight	0.481 Kg
Ambient temperature [°C]	-25 - 65 °C
Ambient temperature [°F]	-13 - 149 °F
Ambient temperature range [°C]	-25 - 65 °C
Ambient temperature range [°F]	-13 - 149 °F
Approval	BV, c UL us UL873, CS C22.2, CE, DNV, GL, LR, PED, RINA, RMRS
Contact function	SPDT+SPST(NO)
Contact rating	AC1=16 A, 400 V
Contact rating	AC15=10 A, 400 V
Contact rating	AC3=16 A, 400 V
Contact rating	DC13=12 W, 220 V
Contact rating	LR 112 A, 400 V
Contact rating	Terminal D: 50 VA, 400 V
Differential left side [bar]	0,70 - 4,00 bar

Differential left side [psi]	10,0 - 58,0 psi
Differential right side [bar]	4,0 bar
Differential right side [psi]	58,0 psi
EAN number	5702422016663
Electrical connections comments	Rubber cable gland
Electrical connection size	6-14 mm
Enclosure rating	IP44
Max. test pressure left side [bar]	20 bar
Max. test pressure right side [bar]	35 bar
Max. Working Pressure, left side [bar] Pe	17,0 bar
Max. Working Pressure, left side [psig] Pe	245 psig
Max. Working Pressure, right side [bar] Pe	35,0 bar
Max. Working Pressure, right side [psig] Pe	510,0 psig
Nema Rating	2
