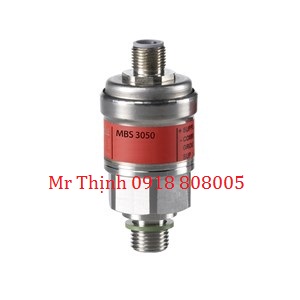

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3000 - 060G5696

Gross weight

0.15 Kg

Net weight

0.14 Kg

EAN

5702423268429

+ supply

Pin 1

- common

Pin 4

Accuracy, max. +/- FS [%]

1 %

Accuracy, typical +/- FS [%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [Max]

85 °C

Ambient temperature range [°C] [Min]

-25 °C

Ambient temperature range [°F] [Max]

185 °F

Ambient temperature range [°F] [Min]

-13 °F

Comments

SEAL RING VITON

Compensated temp. range [°C] [Max]

80 °C

Compensated temp. range [°C] [Min]

0 °C

Compensated temp. range [°F] [Max]

176 °F

Compensated temp. range [°F] [Min]

32 °F

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

Flush diaphragm

No

Intrinsically safe

No

Medium temperature range [°C] [Max]

85 °C

Medium temperature range [°C] [Min]

-20 °C

Medium temperature range [°F] [Max]

185 °F

Medium temperature range [°F] [Min]

-4 °F

Non-linearity BFSL ±FS [%]

0.5 %

Output signal [mA] [Max]

20 mA

Output signal [mA] [Min]

4 mA

Overload pressure max. [bar]

96 bar

Overload pressure max. [psi]

1392 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [Max]

16 bar

Pressure range [bar] [Min]

0 bar

Pressure range [psi] [Max]

232.06 psi

Pressure range [psi] [Min]

0 psi

Pressure unit reference

Gauge (relative)

Product Group

Sensors

Product name

Pressure transmitter

Product type

MBS 3000

Pulse-snubber

No

Quantity per packing format

20 pc

Response time max. [ms]

4 ms

Specification key

MBS 3000-2211-E3GB04-1

Supply voltage [V] DC [Max]

32 V

Supply voltage [V] DC [Min]

9 V
